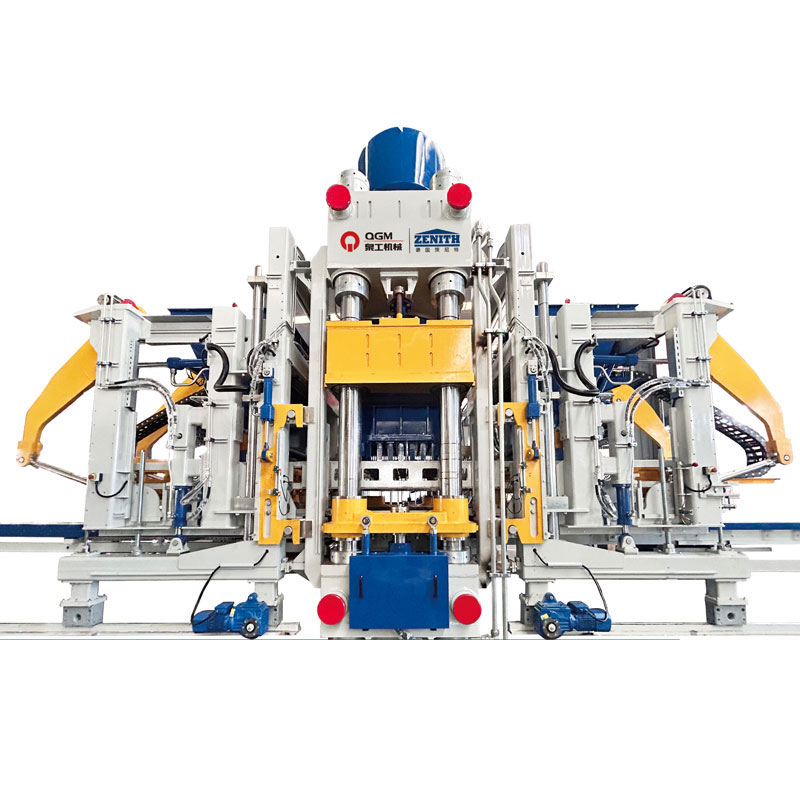

I-ZN2000C iBlokhi yoMshini weConcrete

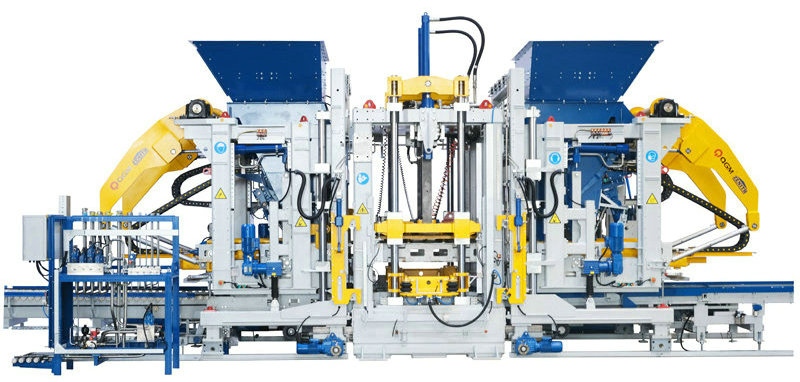

I-ZN2000C i-Concrete Block Machine iyimodeli ephuhlisiwe. Ibonakala ngeqondo eliphezulu lobukrelekrele kunye ne-automation, kwaye isebenzisa ngokupheleleyo itekhnoloji ye-high-tech cut-edge efana nedijithali kunye nenkqubo yolwazi, esetyenziswa ngokubanzi ekwakhiweni kweedolophu ezintsha kunye nezixeko zesipontshi.

Iimbonakalo:

Itafile yokungcangcazela kabini, iimotor ezisibhozo ze-servo (ukhetho) Izixhobo eziphezulu

Ukudityaniswa kweemodyuli ukuze kube lula ukugcinwa kweentlobo ezahlukeneyo zezitena eziveliswayo

Umthamo ophezulu, imveliso ephezulu

Ubungakanani bePallet 1400x1400/1300mm

Indawo yokwenza 1320x1350/1250mm

Ukuphakama kwemveliso 40-500mm

Inani leebhloko Izitena eziHollow: iibhloko eziyi-18/umngundo (390x190x190mm)

Izitena eziqhelekileyo: iibhloko eziyi-105 / ukubumba (240x115x53mm)

Izitena zendlela: iibhloko ezingama-66 / ukungunda (200x100x60mm)

Ubungakanani besixhobo Malunga. 10,000

Malunga. 4,700

Malunga. 3,400

Inkqubo yokungcangcazela Ubuninzi bamandla okuvuselela itafile yevibration: 200/kN

Ubuninzi bamandla okuvuselela intloko yeendaba: 40/kN

Iiparamitha zombane Amandla apheleleyo (isalathiso): 231/kW

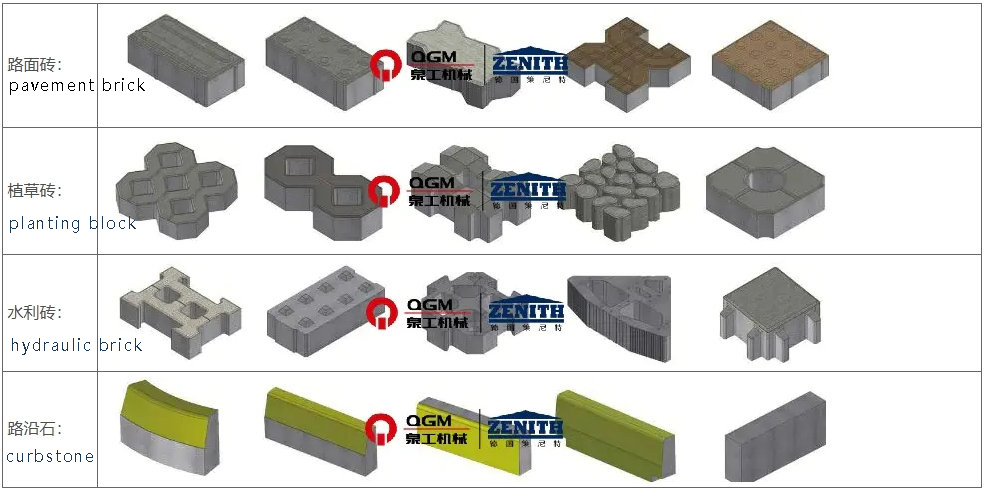

Umzobo weSchematic weesampulu zezitena eziveliswe sisixhobo

Izinto eziluncedo kwezobuGcisa

1. Uyilo oluphezulu lwesakhelo senguqulelo yesiJamani

Isakhelo se-mainframe sithatha ulwakhiwo oluphezulu oludityanisiweyo oludityanisiweyo oluyilwe yitekhnoloji ye-Zenit ye-patent, edityaniswe yintsimbi yecandelo elikhethekileyo, kunye noyilo olufanelekileyo, kunye ne-welding enhle, kunye nesakhelo sonke sifumana unyango lokuguga lokuguga ukuze kuqinisekiswe umgangatho ophezulu kunye nokuzinza okuphezulu kwesakhelo. Inkqubo yoyilo oluphezulu lwesakhiwo yenza ukuba i-mainframe yandiswe, kwaye i-mold yecala lokuvula kunye nokuvala umsebenzi, i-core extraction (ibhodi) umsebenzi, umsebenzi wokufakelwa kwebhodi ye-polystyrene, njl njl.

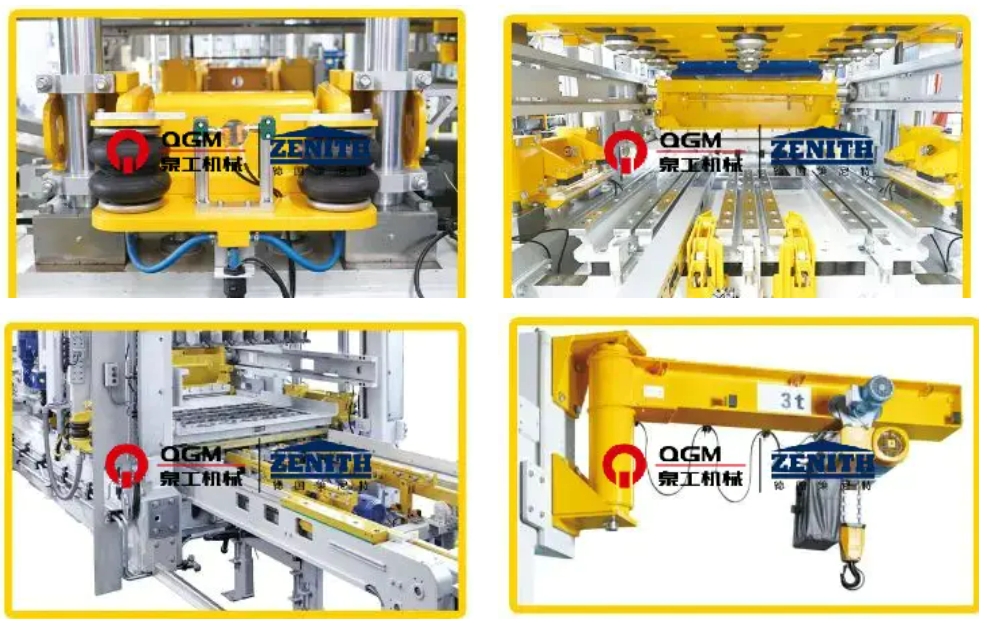

2.Automatic inkqubo yokutshintsha ngundo ngokukhawuleza

Xa isikhunta sidluliselwa kwindawo yokusingatha, inkqubo yayo yokuphakamisa ibona utshintsho oluzenzekelayo kwisixhobo sokutshintsha i-mold. Iimolds eziphezulu kunye nezisezantsi zinyanzeliswa ngokuzenzekelayo nge-pneumatically, ekhuselekileyo, esebenzayo, elula ukuyisebenzisa kwaye kulula ukuyigcina. Ibandakanya ikakhulu:

Isixhobo se-pneumatic mold clamping: Ikakhulu iqulathe isibiyeli sokungunda kunye neentonga zokuqinisa ipneumatic kumacala omabini, ezinceda ekubambeni nasekulungiseni imibundu kunye nokuthomalalisa xa umatshini womkhosi uqhuba ungcangcazelo lwangaphambili kunye nokungcangcazela okuphambili, ukuze kufezekiswe eyona mpembelelo ilungileyo yokungcangcazela kunye nokwandisa ubomi benkonzo yokubumba.

Isixhobo sokutshixa i-indenter ye-pneumatic: i-indenter igxininiswe ngesixhobo sokubambelela kunye ne-airbag, enokuthi ithathe indawo ye-indenter ngokulula nangokukhawuleza, inciphise ixesha lokutshintshwa kwe-mold kunye nokufakwa, kunye nokuqinisekisa ukugcinwa ngokuchanekileyo kwesakhelo sokubumba esisezantsi kunye ne-indenter ephezulu.

Isixhobo sokufakela i-Electric Mold: Isixhobo sokubumba i-mold sisetyenziselwa ukufaka iimbumba kumatshini oyintloko kunye nokutya kunye nokususa iimbumba kumatshini ngokusebenzisa i-mold bracket yombane, enokuthi isetyenziswe kuninzi lwee-molds kwiimarike, kunye nezibiyeli ezikhethekileyo zokubumba zingasetyenziselwa ukubumba okukhethekileyo.

Isixhobo sokutshintsha i-Mold: Ifakwe kwisakhelo somatshini oyintloko, isetyenziselwa ukuphakamisa kunye nokulayisha ii-molds xa utshintsha iimbumba, ezixhotywe ngekhonkco lombane kunye nesixhobo sokuhamba sombane.

3. Iinkqubo zokurhweba

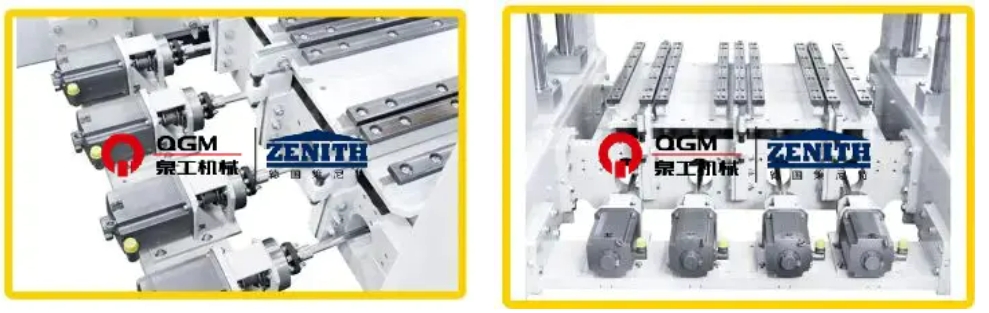

4. Inkqubo yokungcangcazela ye-servo “I-Ultra-dynamic”:

Itekhnoloji ye-servo vibration "I-Ultra-dynamic" luhlobo oluthile olusebenzayo, oluzilungeleyo lwe-vibration inkqubo eyenzelwe ngokukodwa oomatshini bezitena; i-servo motor ingenza impendulo ekhawulezayo kwixesha elifutshane lokuphendula, ukuqonda ukusebenza kwe-vibration ephezulu, ukunciphisa inani le-samente esetyenzisiweyo kunye nokunciphisa umjikelezo wemveliso, ukuvelisa iimveliso zekhonkrithi eziphezulu; inkqubo yokungcangcazela inokuguquguquka ukulungelelanisa neemfuno zeemveliso ezahlukeneyo zekhonkrithi. I-servo motor inokwenza impendulo ekhawulezayo kwixesha elifutshane lokuphendula ukuqonda ukusebenza kwe-vibration ephezulu, enokunciphisa inani lesamente, inciphise umjikelo wemveliso, kwaye ivelise iimveliso zekhonkrithi ezihlangeneyo kakhulu; inkqubo yokungcangcazela inokuguqulwa ngokuguquguqukayo kwiimfuno zemveliso yeemveliso ezahlukeneyo zekhonkrithi.

Iiyunithi ezi-8 zokungcangcazela kunye nebhalansi yomatshini ebekwe ngokwahlukeneyo ngee-servo drives ezi-8;

Iimoto ezisi-8 ze-servo, nganye nganye ixhonywe kwimiqadi yokwahlula yokungcangcazela yangaphandle yeenkxaso zeemoto;

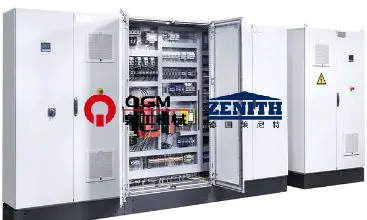

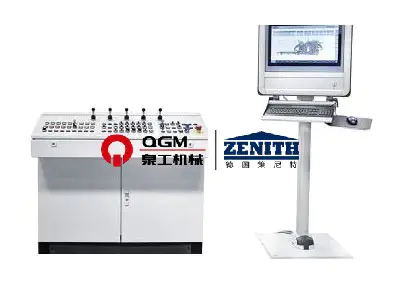

5. Inkqubo yokulawula i-servo echanekileyo

Ngokusebenzisa impendulo yesignali, lawula isigaba kunye nesantya sokungcangcazela, ukulawula ukunyakaza okuhambelanayo, ukulinda kwesantya esiphezulu, kunokugqitywa ngexesha elifutshane lokungcangcazela kunye nokupheliswa kwe-vibration, ukunceda ukunciphisa umjikelo wokubumba, kunye nomphumo ongcono wokuqhawula. Ngokusebenzisa isikhundla kunye nesantya kabini i-loop evaliweyo, lawula amandla okuvuselela asebenza kuphela kwicala elithe nkqo, ukwandisa amandla okuvuselela asebenzayo, kwaye kwangaxeshanye unqande umonakalo othe tyaba wokuvuselela amandla kumatshini, ukwandisa ubomi benkonzo yezixhobo, kwaye ukwazi ukwenza izicwangciso ezahlukeneyo kwiimfuno zemveliso ezahlukeneyo, kwaye uvelise iimveliso ezikumgangatho ophezulu.

Intloko ye-press, i-mold frame, i-aggregate yemoto kunye nemoto yelaphu ilawulwa yi-valve ye-proportional directional valve enempendulo ye-spool, enexesha lokuphendula ngokukhawuleza; imowudi yokulawula i-loop evaliweyo ye-sensor yokufuduka / i-encoder-PLC-i-proportional directional directional valve-cylinder yamkelwa, eyenza ulawulo oluchanekileyo, kunye nesenzo se-cylinder ngokukhawuleza kwaye sizinzile; isikhululo se-hydraulic samkela impompo yepiston eguquguqukayo, engavelisi i-oyile yoxinzelelo kwaye ikhuphe impompo xa inkqubo ye-hydraulic ifikelela kuxinzelelo olubekiweyo lokunciphisa ukusetyenziswa kwamandla; isikhululo se-hydraulic samkela i-accumulator ye-oyile encedisayo, enciphisa ukusetyenziswa kwamandla; kunye nesikhululo se-hydraulic samkela i-accumulator yokuncedisa i-oyile, enciphisa ukusetyenziswa kwamandla kunye nokunciphisa ukusetyenziswa kwamandla. Isikhululo se-hydraulic samkela i-accumulator yokuncedisa i-oyile encedisayo, engasetyenziselwa izenzo ezininzi ngexesha elinye, kwaye uxinzelelo lwenkqubo ye-hydraulic luzinzile; inkqubo ye-hydraulic inezinzwa zoxinzelelo, ezinokuboniswa kwipaneli yokusebenza ukuze ibonakale lula; inkqubo ye-hydraulic inezinzwa zokushisa, ii-coolers kunye nezifudumezi, ezinokulawula ngokufanelekileyo ukushisa kweoli, ukwenzela ukuba ioli ye-hydraulic ibe nokusebenza kakuhle.

6. Iinkqubo ze-hydraulic
